P4–Particle Analysis System [Manual single field]

  • preview

1.Fixed Magnification suitable for Particle Analysis.
2.Pre calibrated, Pre configured for ISO 16232..
3.Manual operated Light Control..
4.Manual controls for X and Y movements of Stage..
5.Manual Adjustment for Focus and zoom..
6.Manually Take all the images to cover full paper..

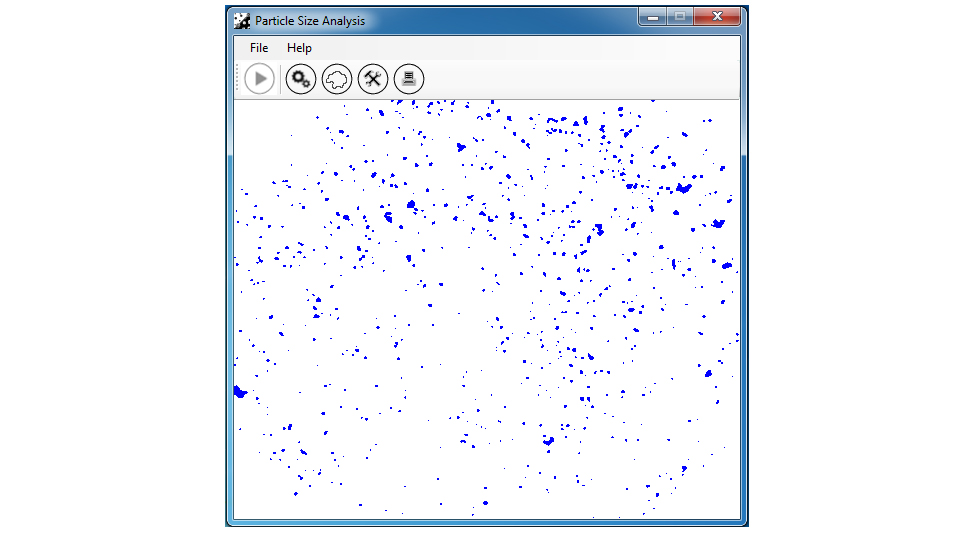

7.Two software in one for Single field analysis and multiple field Analysis..
8.Report Generated in Word format..
9.All the particle are distributed as per there size in different slabs of Micron from 5 to 2000 and above..
10.Evaluation of all particle parameters to show average of all particles and details of Min and Max Size Particle (particle size with min area, particle size with max area, particle size min, particle size max, length, width, area, roundness, perimeter, Eq. Dia., Aspect Ratio, fiber length, and many more)..

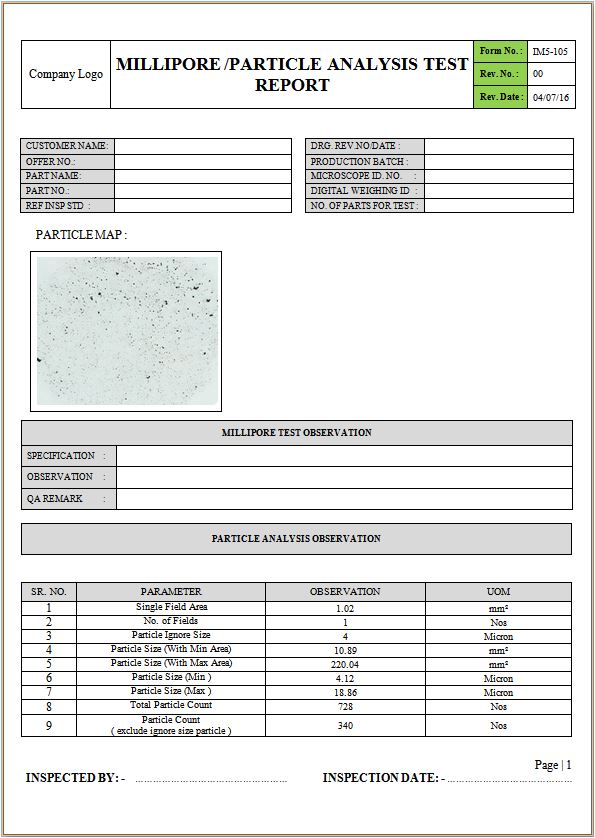

Report Page-1

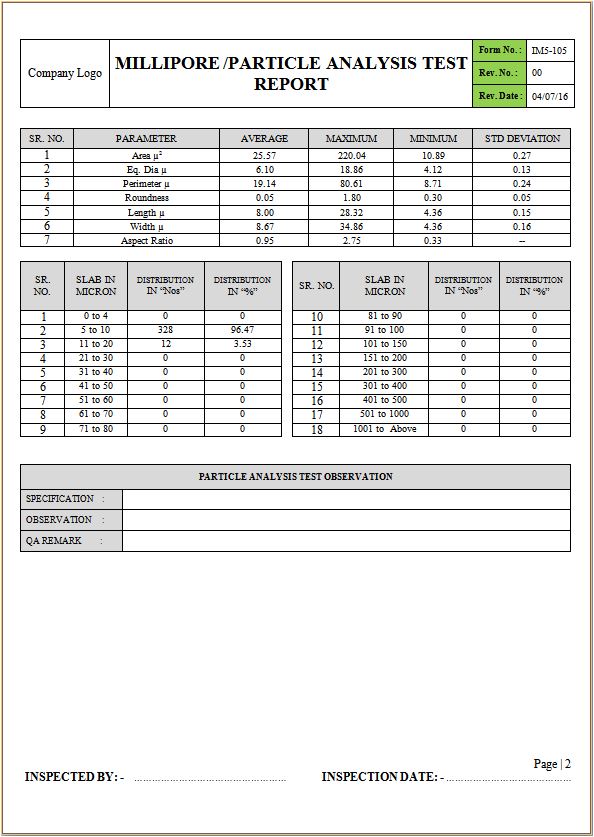

Report Page-2
