P5.0M – Manual Full Paper Particle Analysis System

  • preview
  • preview

1. Fixed Magnification suitable for Particle Analysis.
2. Pre calibrated, Pre configured for ISO 16232.
3. Manual operated Light Control.
4. Manual controls for X and Y movements of Stage.
5. Manual Adjustment for Focus and zoom.

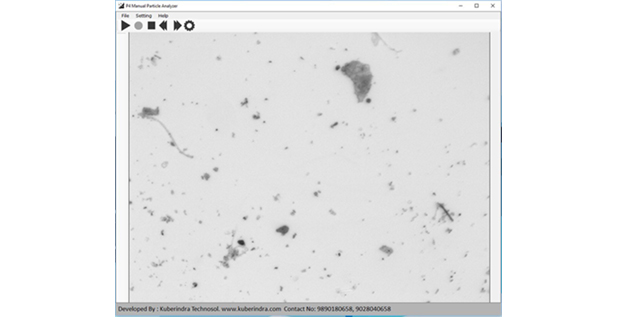

6. Manually Take all the images to cover full paper.
7. Auto image stitching and analysis.
8. Auto save report in Word format.
9. Three software in one for Single field analysis, multiple field Analysis and Full Paper analysis.
10.Calculation of Component-Cleanliness-Code (CCC) according to ISO 16232.
11.Automatic detection of particle types Reflective, non- Reflective and Fibrous.
12.Evaluation of many particle parameters for each particle (particle size with min area, particle size with max area, particle size min, particle size max, length, width, area, roundness, perimeter, Eq. Dia., Aspect Ratio, fiber length, and many more).

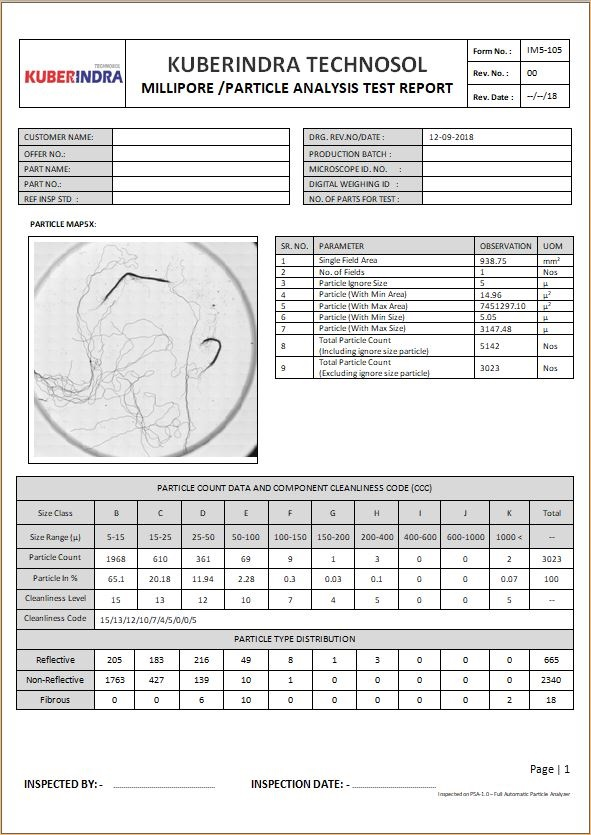

Report Page 1

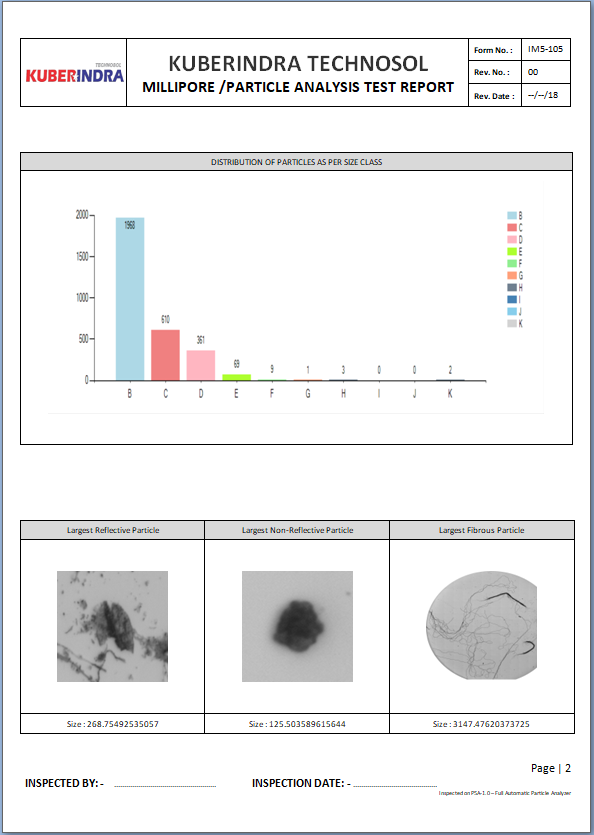

Report Page 2

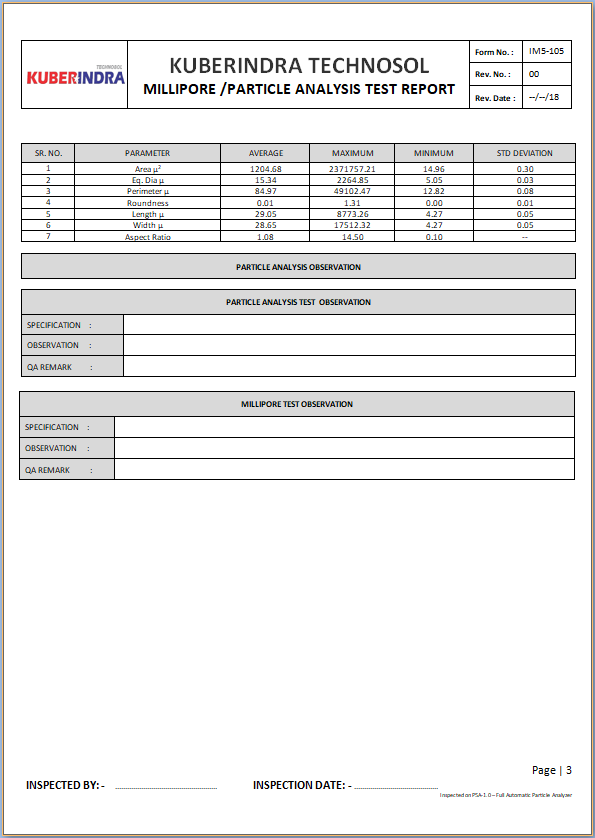

Report Page 3
